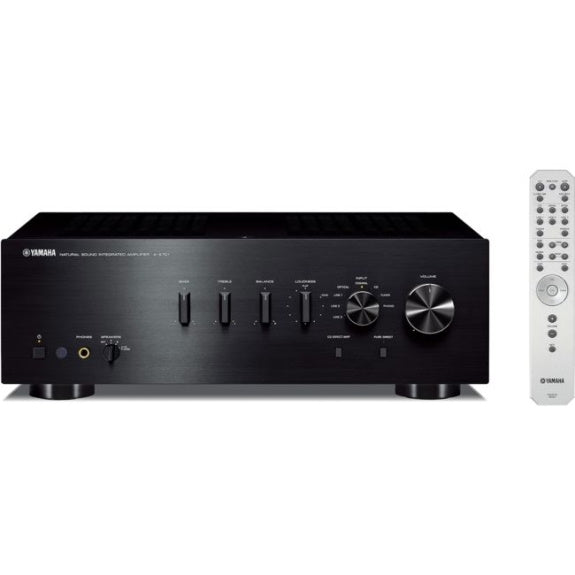

Yamaha 2 Channel Stereo Integrated Amplifier - Black

Yamaha 2 Channel Stereo Integrated Amplifier - Black

Model:

AS701B

Ipn:

663924

Skip to product information
1 of 1
Save 8%
Regular price $1,199.00
Regular price Was $1,299.00 Sale price
$1,199.00
Taxes included.
Sold out
Show More

How do I get it?

You have not set a location

Collapsible content

Overview

description

The input to output direct symmetrical design at the heart of the Yamaha 2 Channel Stereo Integrated Amplifier in Black reflects a clear commitment to keeping the audio signal as pure and unaltered as possible from source to speaker, backed up by total purity audio reproduction technology that runs through the full design of the amplifier. A high power output of 160W x 2 maximum and 100W x 2 RMS gives the amplifier the muscle to drive a wide range of speakers with ease, while CD direct amplification and Pure Direct offer an uncoloured and transparent path for source material. Custom-made power transformer, 12,000µF block capacitors, and aluminium-extruded heat sinks speak to the quality of the internal componentry, anti-resonance and tough base construction keeps the chassis stable during use, and continuous variable loudness control gives the listener a practical and accessible way to shape the sound to suit the environment.

specifications

  • Brand
    Yamaha
  • IPN
    663924
  • Model
    AS701B
  • Manufacturer's Warranty
    2 Years
  • Size
    100w
  • Width
    435 mm
  • Height
    151 mm
  • Depth
    387 mm
  • Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz)
    100 W + 100 W (0.019% THD)
  • Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe)
    160 W + 160 W
  • High Dynamic Power/Channel (8/6/4/2 ohms)
    140/170/220/290 W
  • Damping Factor
    240
  • Frequency Response
    10 Hz-100 kHz +/-1.0 dB
  • Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz)
    0.019% (50 W/8 ohms)
  • Signal-to-Noise Ratio (CD)
    99dB (input shorted, 200 mV)
  • Audio In / Out
    8 / 2
  • Digital Input
    Yes (optical / coaxial)
  • Subwoofer Out
    Yes
  • DC out
    Yes
  • Pure Direct
    Yes
  • Standby Power Consumption
    0.5W
  • Power Management (Auto Power Standby)
    Yes
  • ToP-ART
    Yes
  • Switchable CD Direct Amplification
    Yes

features

  • 160W x 2 (max)
  • 100W x 2 (RMS) high power output
  • ToP-ART (Total Purity Audio Reproduction Technology)
  • I/O (input to output) Direct Symmetrical Design
  • ART (Anti-Resolution and Tough) Base
  • Custom-made power transformer
  • 12,000uF block capacitors
  • Aluminum-extruded heat sinks
  • CD Direct Amplification & Pure Direct
  • Continuous Variable Loudness Control
  • Gold-plated speaker terminals and RCA terminals
  • Digital audio inputs for TV or Blu-ray Player
  • Connection for Optional YBA-11 Bluetooth Wireless Adapter
  • Simple yet sophisticated design (aluminium front panel and knobs)
  • Auto Power Standby
