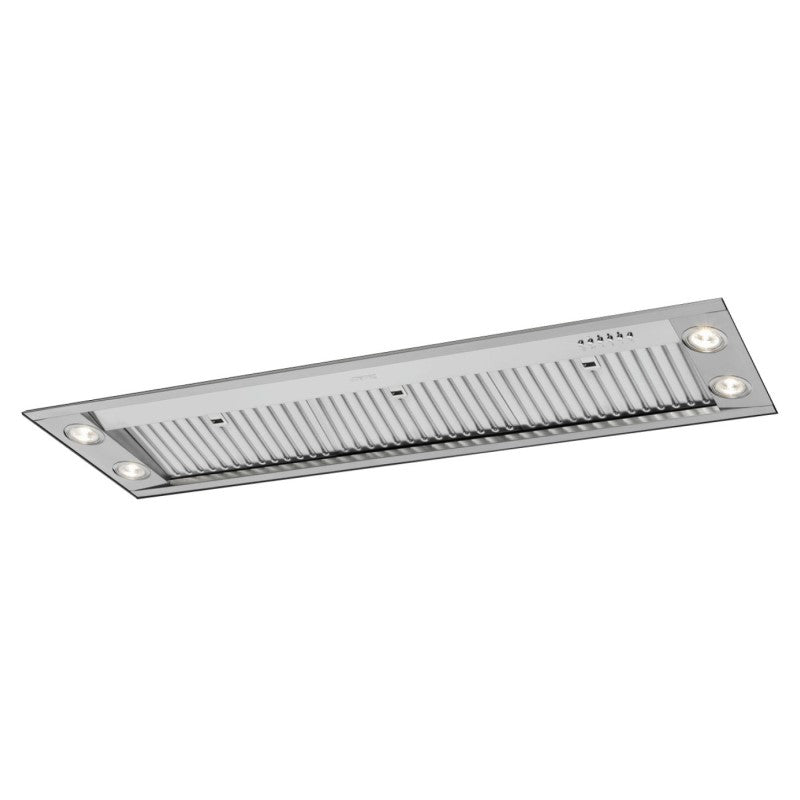

Smeg 120cm Diamond High Performance Undermount Rangehood

Smeg 120cm Diamond High Performance Undermount Rangehood

Model:

KDIAM120AX

Ipn:

835673

Skip to product information
1 of 1
Save 10%
Regular price $3,140.00
Regular price Was $3,490.00 Sale price
$3,140.00
Taxes included.

The Complete Smeg Kitchen Offer

Buy 2 or more selected Smeg appliances and receive tiered savings between 26 Feb - 27 May 2026. T&C's apply. Find out more

Offer ends Wed, May 27, 2026

Save up to $1600 off Selected Premium Smeg Kitchen Appliances

Save up to $1600 on select kitchen appliances and wine cabinets. T&C's apply. Find out more

Offer ends Wed, May 27, 2026

Show More

How do I get it?

You have not set a location

Collapsible content

Overview

description

The Smeg 120cm Diamond High Performance Undermount Rangehood is a powerful addition to any modern kitchen, delivering exceptional air extraction while maintaining a sleek, minimalist design. Built for high performance, this rangehood tackles smoke, steam, and odours effortlessly, keeping your kitchen atmosphere fresh and comfortable. With four fan speeds to choose from, it allows you to customise ventilation intensity based on your cooking needs. Despite its impressive power, it operates with low noise, ensuring a peaceful cooking environment. The integrated LED lighting provides bright, energy-efficient illumination over your cooktop, while the stainless steel filters are not only durable but also dishwasher-safe, making maintenance a breeze. For home chefs seeking both function and style, the Smeg 120cm Diamond Undermount Rangehood is a premium choice that combines reliable performance with refined design.

specifications

  • Brand
    Smeg
  • IPN
    835673
  • Model
    KDIAM120AX
  • Manufacturer's Warranty
    5 Years
  • Size
    120cm
  • Width
    11200 mm
  • Height
    360 mm
  • Depth
    295 mm
  • Colour/Finish
    STAINLESS STEEL
  • SIZE (CM)
    120 CM
  • Product family
    Hood
  • Hood Type
    Integrated hood
  • Hood width
    120 cm
  • Extraction
    Extraction
  • Electronic control
    Yes
  • Colour
    Stainless steel
  • Finishing
    Satin
  • Aesthetic
    Universale
  • Design
    Fully integrated
  • Material
    Stainless steel
  • Type of steel
    Brushed
  • No. of speeds
    3
  • Intensive speed
    Yes
  • Time-setting options
    Automatic switch-off
  • Control setting
    Electronic buttons
  • LED color
    White
  • No. of lights
    4
  • Light type
    LED
  • Light Power
    1 W
  • Light color temperature scale (°K)
    3000 °K
  • Free outlet maximum capacity
    1400 m³/h
  • Motor power
    550 W
  • No. of filters
    2
  • Anti-grease filters
    Baffle
  • Filter replacement indicator
    Yes
  • Minimum distance from GAS hob
    750 mm
  • Minimum distance from ELECTRIC hob
    650 mm
  • Vent outlet
    150 mm
  • Non-return valve
    Yes
  • Electrical connection rating
    555 W
  • Voltage
    220-240 V
  • Frequency (Hz)
    50-60 Hz
  • Power supply cable length
    1500 mm
  • Extraction rate IEC 61591
    552 m³/h
  • Noise level IEC 60704-2-13
    46 dB(A)
  • Power
    154 W
  • Extraction rate IEC 61591
    950 m³/h
  • Noise level IEC 60704-2-13
    63 dB(A)
  • Power
    255 W
  • Extraction rate IEC 61591
    1412 m³/h
  • Noise level IEC 60704-2-13
    71 dB(A)
  • Power
    334 W
  • Extraction rate (IEC 61591)
    1555 m³/h
  • Noise level IEC 60704-2-13
    74 dB(A)
  • Power
    370 W

features

  • 1400 m³/h maximum capacity
  • 3 speed settings
  • 4x 1W LED light
  • 2x anti-grease baffle filters
  • 550W motor
  • Automatic switch-off
