Panasonic 3.5/4.0kW Split Reverse Air Purifying Air Conditioner
Panasonic 3.5/4.0kW Split Reverse Air Purifying Air Conditioner
Model:
CS/CU-Z35AKR
Ipn:
835114
How do I get it?

Related Promotions
-
If your home feels like it needs a lift, you don’t necessarily need a renovation. A few well-chosen upgrades can change the atmosphere almost immediately. 1. A Bigger TV Upgrading...
-
You don’t need new cabinetry or a full renovation to refresh your kitchen. Sometimes it’s the smaller upgrades — the ones you use every single day — that change how...
-
There’s something special about setting up your first home. Every decision feels significant — and exciting. When it comes to appliances, striking the right balance between investment and practicality helps...
-
Honour your mum this Mother's Day with a gesture that goes beyond the ordinary, one that reflects her unique personality and passions. Our carefully crafted gift guide is filled with thoughtful options from renowned brands, designed to help you find that perfect expression of your affection and appreciation. We recognize the diverse interests and hobbies that mums may have, which is why our guide spans a range of categories, ensuring you can find something that will truly resonate with her. From kitchen wonders to personal pampering, our suggestions are tailored to make her feel special. Explore our detailed recommendations below to find the ultimate Mother's Day gift that celebrates her uniqueness.
-
The End of Financial Year (EOFY) Clearance is a golden opportunity for Australian shoppers to grab phenomenal discounts and unbeatable offers. Here’s your guide to navigating these fantastic sales events.
-
November’s here, and that means it’s nearly time for Black Friday deals! If you’re looking to score big on home appliances, Black Friday is the perfect time to upgrade. From fridges and washing machines to TVs and vacuums, planning when to shop could make a big difference in how much you save. So, should you start early, or is waiting until later in the day the smarter move? Let’s look at the pros and cons to help you decide.
-
Black Friday has been consistently on the rise on a global scale, becoming a premier moment to grab extraordinary discounts and unbelievably low prices. Before you dive into your shopping spree, let's uncover ways to prepare and maximise your Black Friday savings.
-
Black Friday sales provide a fantastic chance to seize substantial discounts and unbeatable savings. Dive into the ultimate shopping fiesta with Billy Guyatts' Black Friday Sale. Prepare to be astounded by substantial discounts on high-end products like TVs, soundbars, and home appliances. Gain insights on how to master Black Friday shopping with strategic planning, starting with extensive research on your desired items to understand their real value. Build a focused shopping list, jumpstart your holiday gift buying, and support local businesses for a rewarding shopping experience. Embrace early shopping to snag the best deals and utilize price matching for additional savings. Explore convenient 'Buy Now, Pay Later' options for a budget-friendly spree, and compare Black Friday and Cyber Monday sales for the best offers. Get ready to shop like a pro and make the most of this year’s Black Friday and Cyber Monday deals at Billy Guyatts!
Collapsible content
Overview
description
specifications
-
BrandPanasonic
-
IPN835114
-
ModelCS/CU-Z35AKR
-
Manufacturer's Warranty5 Years
-
Size3.5/4.0kW
-
Width0 mm
-
Height0 mm
-
Depth0 mm
-
Colour/FinishBLACK
-

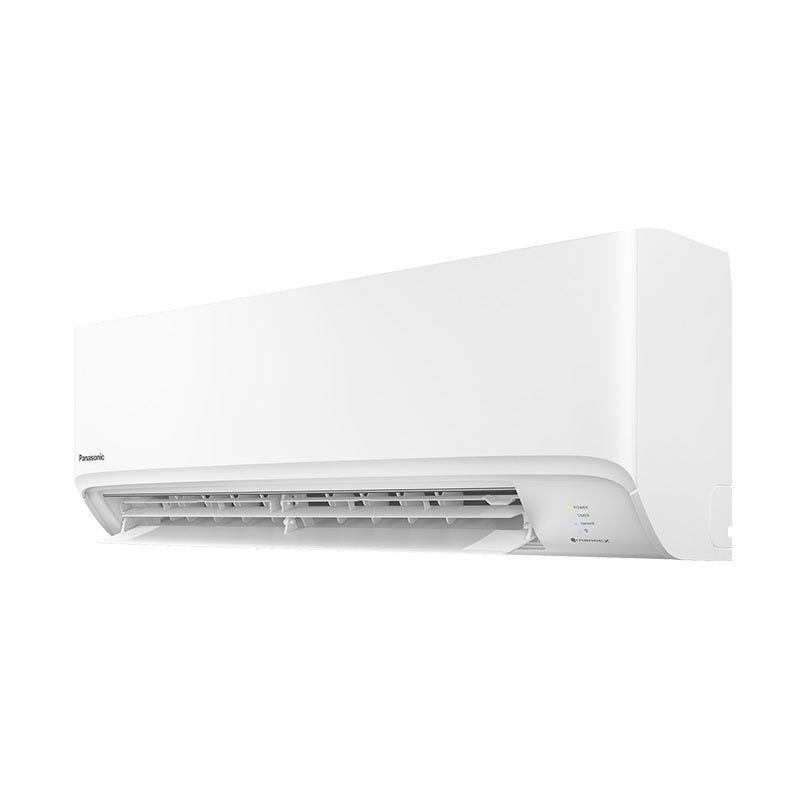

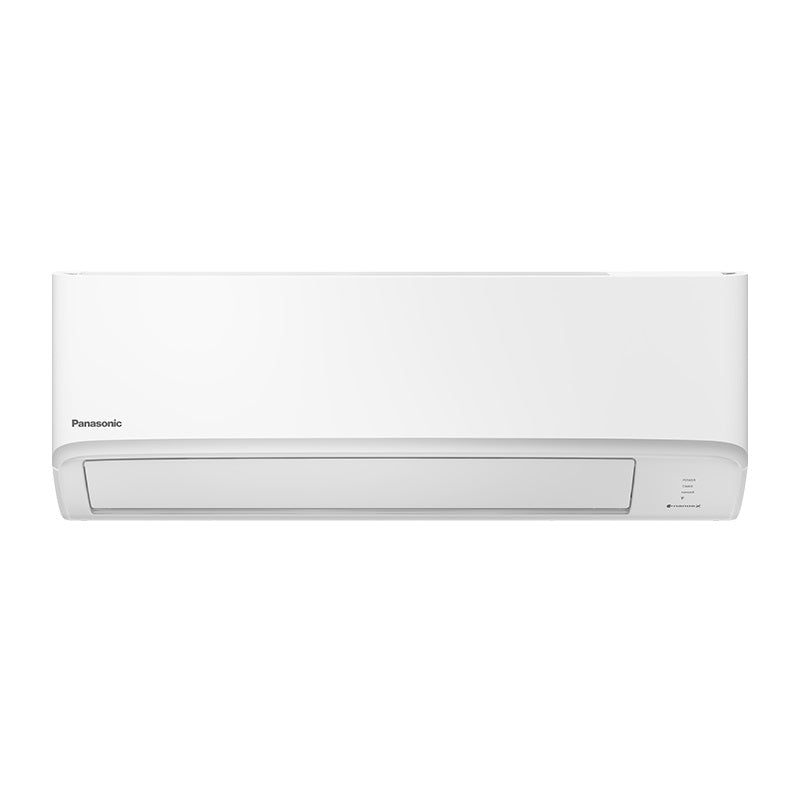

Indoor UnitCS-Z35AKRW
-

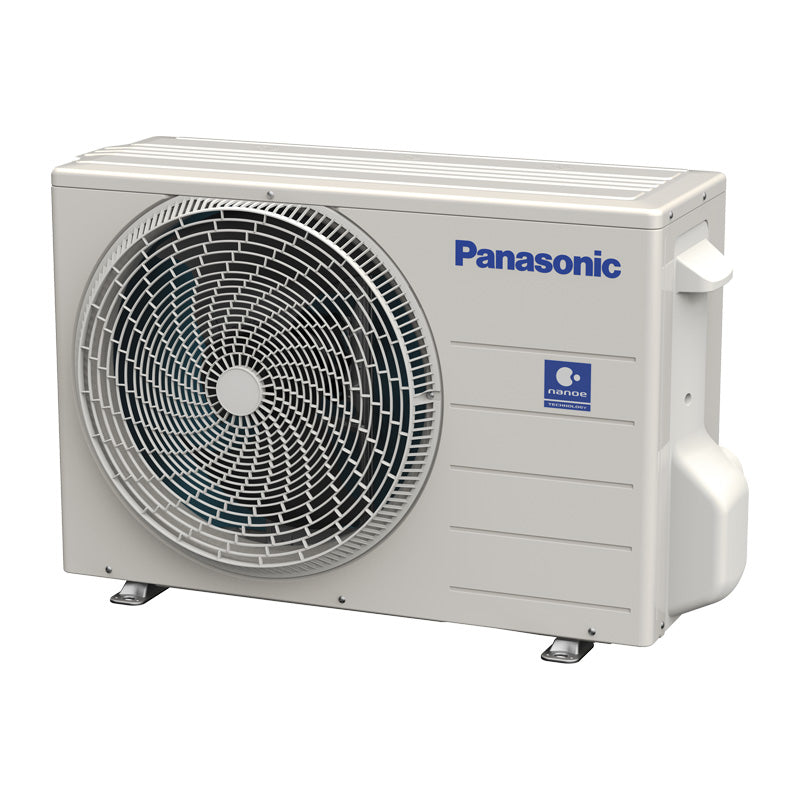

Outdoor UnitCU-Z35AKR
-
Cooling Capacity (min-max) (kW)3.50 (1.00-4.20) kW
-
Heating Capacity (min-max) (kW)4.00 (0.90-5.70) kW
-
Cooling Capacity (min-max) (Btu/h)11,900 (3,410-14,300) Btu/h
-
Heating Capacity (min-max) (Btu/h)13,600 (3,070-19,400) Btu/h
-
Cooling Indoor Air Flow (L/s)193 L/s
-
Heating Indoor Air Flow (L/s)202 L/s
-
Dehumid (L/h)2.00 L/h
-
Cooling Running Current (A)3.60 A
-
Heating Running Current (A)3.85 A
-
Max Current (A)7.20 A
-
Cooling Power Input (min-max) (kW)0.82 (0.21-1.29) kW
-
Heating Power Input (min-max) (kW)0.87 (0.19-1.65) kW
-
Cooling AEER/EER4.22 W/W / 4.27 W/W
-
Heating ACOP/COP4.55 W/W / 4.60 W/W
-

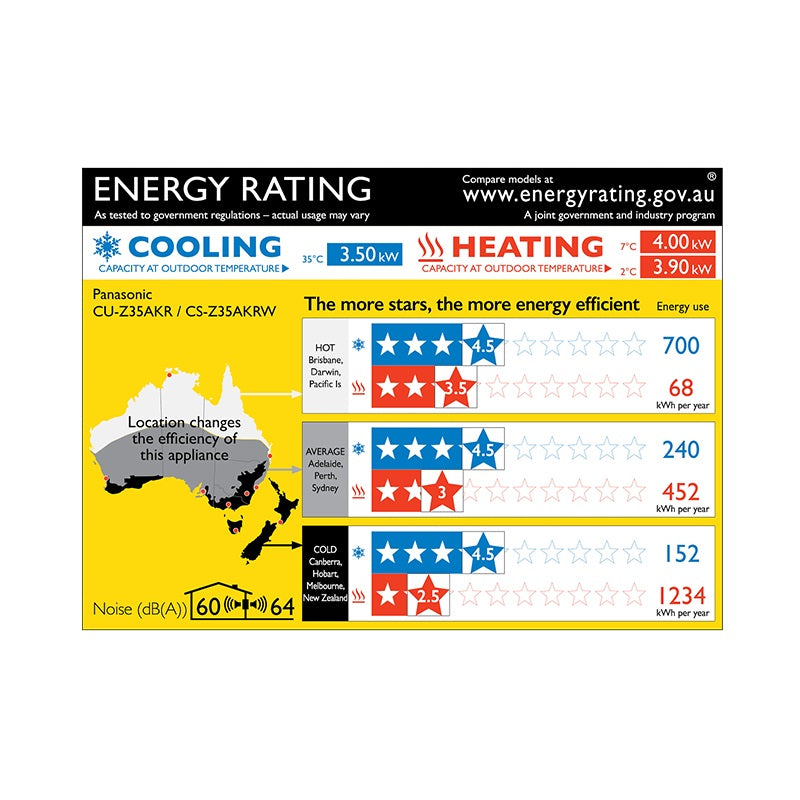

Star Rating - Cooling (Hot Climate)4.5 TCSPF
-
Star Rating - Cooling (Average Climate)4.5 TCSPF
-
Star Rating - Cooling (Cold Climate)4.5 TCSPF
-
Star Rating - Heating (Hot Climate)3.5 HSPF
-
Star Rating - Heating (Average Climate)3.0 HSPF
-
Star Rating - Heating (Cold Climate)2.5 HSPF
-
Indoor Unit Sound Pressure Noise Level (Cooling) (H / L / Q-Lo)44/26/19 dB(A) *Sound pressure level specification is measured according to JIS C9612
-
Indoor Unit Sound Pressure Noise Level (Heating) (H / L / Q-Lo)44/29/22 dB(A) *Sound pressure level specification is measured according to JIS C9612
-
Indoor Unit Sound Power Noise Level (Cooling) (H / L / Q-Lo)60/42/35 dB(A
-
Indoor Unit Sound Power Noise Level (Heating) (H / L / Q-Lo)60/45/38 dB(A)
-
Outdoor Unit Sound Pressure Noise Level (Cooling) (H / Q-Lo)49/44 dB(A) *Sound pressure level specification is measured according to JIS C9612. (H / Q-Lo): 50/45 dB(A) *Sound pressure level specification is measured according to JIS C9612
-
Outdoor Unit Sound Power Noise Level (Cooling) (H / Q-Lo)64/59 dB(A)
-
Outdoor Unit Sound Power Noise Level (Heating) (H / Q-Lo)65/60 dB(A)
-
Refrigerant TypeR32
-
Refrigerant Pipe Diameter (Liquid Side)ø 6.35 mm (1/4 inch)
-
Refrigerant Pipe Diameter (Gas Side)ø 9.52 mm (3/8 inch)
-
Pipe Extension Length (min-max)3 m ~ 20 m
-
Maximum Elevation Length15 m
-
Pipe Length for Additional Refrigerant Gas7.50 m
-
Additional Gas Amount10 g/m
-
Power SupplyOutdoor
-
Outdoor Unit Operating Range (Cooling)-10°C ~ +46°C
-
Outdoor Unit Operating Range (Heating)-15°C ~ +24°C
-
iAUTO-XYes
-
ECO Mode with A.I.Yes
-
Inverter ControlYes
-
Sleep ModeYes
-
Quiet ModeYes
-
Fan ModeYes
-
Soft Dry Operation ModeYes
-
Hot Start ControlYes
-
Auto Changeover (Inverter)Yes
-
Personal Airflow CreationNo
-
Manual Horizontal Airflow Direction ControlYes
-
Airflow Direction Control (Up & Down)Yes
-
nanoe™ XYes (Generator Mark 1)
-
Odour Removing FunctionYes
-
Removable Washable PanelYes
-
24-Hour Dual ON & OFF Real Setting TimerYes
-
Demand Response Enabling Device (DRED)Yes
-
LCD Wireless Remote ControlYes
-
Wi-FiYes (Built-in)
-
Wired Remote ControlYes (Optional)
-
Random Auto RestartYes (32 Restart Patterns)
-
Blue Fin CondenserYes
-
Long Piping (max.)20 m
-
Top Panel Maintenance AccessYes
-
Self-Diagnostic FunctionYes
-
NotePlease read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
features
- 24-hour nanoe™ X Air Purification
- iAUTO-X function
- Built-in Wi-Fi
- Voice Assistant Compatibility
- Faster and Further Airflow with AEROWINGS
- Built Tough to Last
- ECO Mode with Artificial Intelligence (A.I.) Control
- Corrosion-Resistant Blue Fin Condenser
- Water Resistant PCB
- Corrosion-Resistant Outdoor Coating
- Better Heat Transfer with Copper Tube Condenser

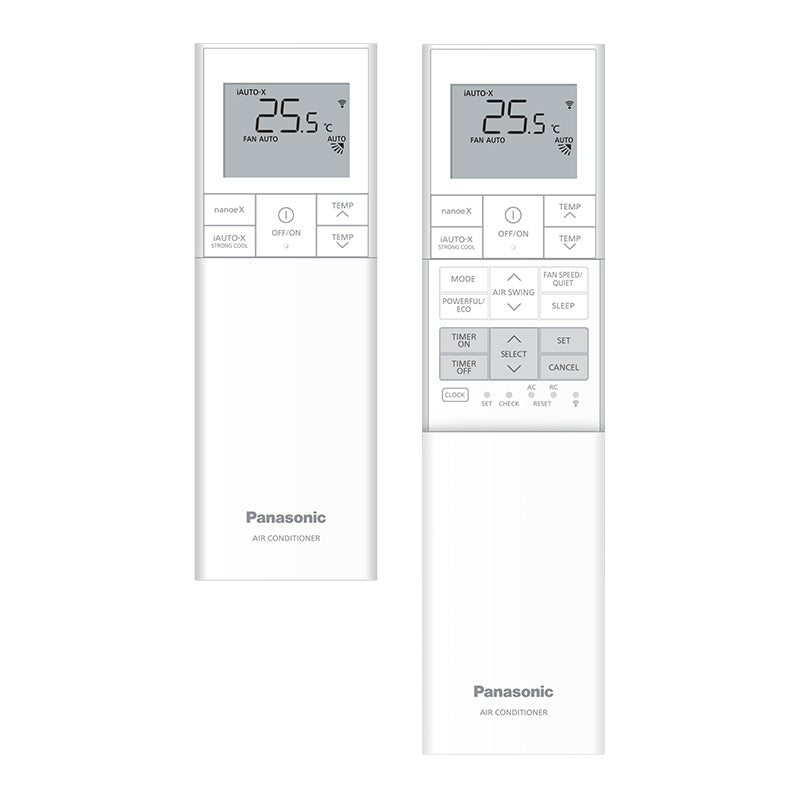

- Wireless Remote Controller
- Optional Wired Remote Controller
