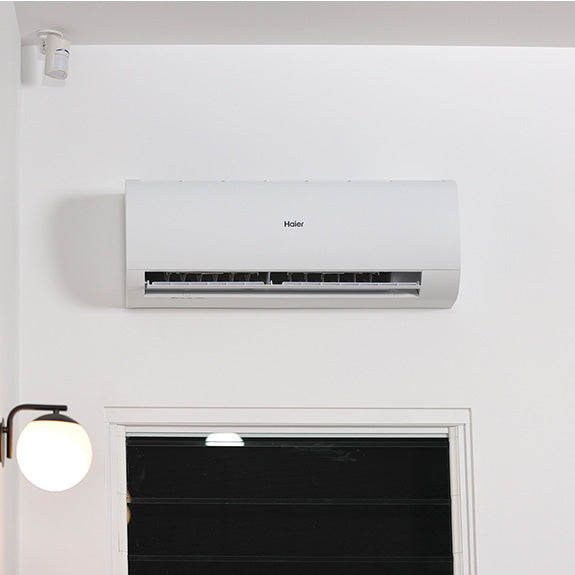

Haier Pinnacle 3.5kW/3.7kW Split Reverse Inverter Air Conditioner

Haier Pinnacle 3.5kW/3.7kW Split Reverse Inverter Air Conditioner

Model:

AS35PBDHRA-SET

Ipn:

825672

Skip to product information
1 of 4
Save 17%
Regular price $911.00
Regular price Was $1,099.00 Sale price
$911.00
Taxes included.

EOFY Sale - Up to 50% Off!

Save up to 50% on selected products during the EOFY Sale. Find out more

Offer ends Tue, Jun 30, 2026

Include a Back Up Plan?

Learn more
Show More

How do I get it?

You have not set a location

Collapsible content

Overview

description

The Haier Pinnacle 3.5kW/3.7kW Split Reverse Inverter Air Conditioner delivers powerful comfort, smart control and advanced air care straight out of the box. With built-in Wi-Fi, it is ready to connect immediately and is compatible with Google and Alexa voice activation for hands-free convenience. Providing 3.5kW of cooling and 3.7kW of heating, it ensures year-round comfort with efficient inverter performance. Integrated UV sterilisation technology helps improve indoor air quality, achieving up to 92.78% anti-bacterial and 91.47% anti-virus effectiveness. Indoor and outdoor evaporator self-clean functions support long-term efficiency and cleaner operation, while an impressive 18-metre air throw and Turbo Cool mode deliver fast, even temperature control. Designed for modern living, this system combines smart technology, strong performance and energy efficiency.

specifications

  • Brand
    Haier
  • IPN
    825672
  • Model
    AS35PBDHRA-SET
  • Manufacturer's Warranty
    5 Years
  • Size
    3.5/3.7kW
  • Width
    805 mm
  • Height
    292 mm
  • Depth
    200 mm
  • Cooling capacity (kW)
    3.5kW
  • Heating capacity (kW)
    3.7kW
  • COP
    3.70
  • EER
    3.80
  • HSPF-RES (Hot/Average/Cold)
    4.816 / 4.046 / 3.452
  • HSPFCOM (Hot/Average/Cold)
    4.841 / 4.379 / 3.844
  • Star-Cool (Hot/Average/Cold)
    3.5 / 3.5 / 3.5
  • Star-Heat (Hot/Average/Cold)
    3.0 / 2.5 / 1.5
  • TCSPF-COM (Hot/Average/Cold)
    5.941 / 6.105 / 6.561
  • TCSPF-RES (Hot/Average/Cold)
    5.494 / 5.053 / 5.268
  • 24 Hour timer
    Yes
  • 56°C Steri-clean
    Yes
  • Anti-bacterial silver ion coating
    Yes
  • Auto restart
    Yes
  • Auto swing-up and down
    Yes
  • Blue fin coils
    Yes
  • Built-in Wi-Fi smart control
    Yes
  • Concealed LED display
    Yes
  • DC inverter
    Yes
  • DRED (Demand Response) ready
    Yes
  • Dry mode
    Yes
  • Intelligent air
    Yes
  • Internal and external heat exchanger self-cleaning
    Yes
  • Long distance air supply
    12
  • MEPS approved
    Yes
  • Refrigerant factory charge
    0.84
  • Self diagnostics
    Yes
  • Standard controller
    wireless
  • UV Protect
    UVC sterilisation
  • Voice control via Google Home or Amazon Alexa
    Yes
  • Indoor unit model
    AS35PBDHRA
  • Liquid line
    Pipe size 6.35
  • Maximum pipe run
    15
  • Outdoor unit model
    1U35MADFRA
  • Suction line
    Pipe size 9.52
  • DC inverter
    Yes
  • R32 Refrigerant
    Yes
  • Sound power SWL (outdoor)
    63dBA
  • Sound pressure SPL (indoor)
    40 / 36 / 32 / 22dBA
  • Sound pressure SPL (outdoor)
    53dBA
  • Power phase
    1.0
  • Supply frequency
    50Hz
  • Supply voltage
    230V

features

  • UV Protect to kill bacteria & viruses
  • Healthier air
  • Voice and remote control
  • Air flow to every corner
  • Easy installation and maintenance
  • Sleep mode
  • Turbo mode
